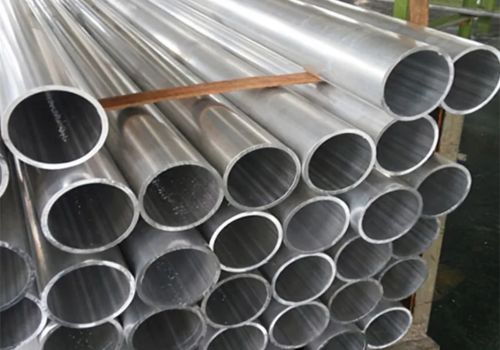

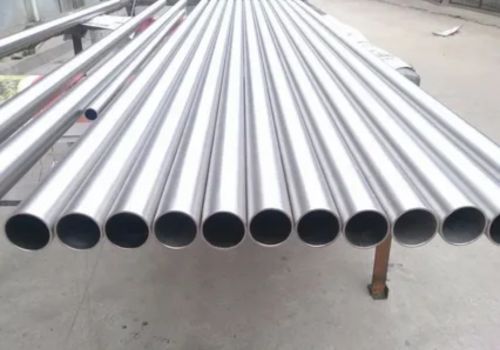

Quyen Aluminium is a prominent producer and supplier of aluminum welded pipes in Da Nang, Vietnam, providing durable and high-performance pipe solutions for multiple industrial and commercial uses. With state-of-the-art welding technology and rigorous quality control, the company has produced aluminium welded pipes across a broad spectrum of diameters, wall thicknesses, and alloy grades. Famous for their accurate dimensions, weld seam smoothness, and high surface finish quality, Quyen Aluminium’s welded pipes find applications in the construction, automobile, marine, HVAC, and structural engineering industries. The company maintains a consistent level of product quality and prompt delivery to domestic as well as international buyers.
Aluminium welded pipes are generally fabricated using alloys such as 6061, 6063, and 5083, which offer a satisfactory combination of strength, corrosion resistance, and weldability. The welding operation entails the joining of aluminium strips or sheets along a longitudinal seam to produce a robust, rigid pipe with consistent mechanical properties. The pipes have high thermal and electrical conductivity, medium to high tensile strength, and resistance to weathering and corrosion. The aluminium welded pipes are structurally rigid but very light in weight, with ease in handling and installation. They may also be anodized or coated for enhanced surface protection and beauty.
Standards : ASTM B345, B241, B429 / ASME SB345, SB241, SB429
Standard : AMS QQ-A-200/8, AMS QQ-A-200/9, AMS 4160/4161/4172
Size : 8 (1-1/2″ / 1.900″)
Outer Diameter : 1″ through 16″
Length : Double Random, Single Random, Cut Length
Thickness : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
End : Plain End, Beveled End, Threaded
ASTM B241 / ASME SB241 – Standard Specification for Aluminum and Aluminum-Alloy Welded Pipe and Welded Extruded Pipes
ASTM B345 / ASME S345 – Standard Specification for Aluminum and Aluminum-Alloy Welded Pipe and Welded Extruded Pipe for Gas and Oil Transmission and Distribution Piping Systems
ASTM B429 / ASME SB429 – Standard Specification for Aluminum-Alloy Extruded Structural Pipe and Tube
EN AW-AlMg1SiCu – Standard Specification for Aluminum and Aluminum-Alloy Round Pipe
ISO AlMg1SiCu – Standard Specification for Aluminum and Aluminum-Alloy Cold / Hot Rolled Piping
| Alloy | Fe | Si | Mg | Mn | Cu | Zn | Ti | Cr | Others | AI |
| 1100 (min) | 0.35 | 0.25 | 0.01 | 0.01 | 0.05 | 0.01 | 0.020 | Trace | 0.05 (each) | 99.60% |
| 1100 (max) | 0.50 | 0.35 | 0.03 | 0.05 | 0.20 | 0.05 | 0.030 | Trace | 0.15 (total) | remainder |
| 5083 | 0.40 max | 0.40 max | 4.0 / 4.90 | 0.40 / 1.0 | 0.10 max | 0.25 max | 0.15 max | 0.05 / 0.25 | 0.05 max | Bal |
| 6061 | 0.7 | 0.4-0.8 | 0.8-1.2 | 0.15 | 0.15-0.4 | 0.25 | 0.15 | 0.15-0.35 | 0.005/0.15 | Remainder |
| 6068 | 0.50 max | 0.7 – 1.3 | 0.06-1.20 | 0.40-1.00 | 0.10 max | 0.20 max | 0.10 max | 0.25 max | 0.05 max | Bal |
| 7075 min | 2.10 | 1.20 | 5.10 | 0.18 | ||||||
| 7075 max | 0.50 | 0.40 | 2.90 | 0.30 | 2.00 | 6.10 | 0.20 | 0.28 | 0.05 |
| Alloy | Temper | UTS(Mpa) | % Elongation | Tensile Strength | Hardness Brinell | Proof Stress | Yield Strength (PSI) | Shear Strength (PSI) | Brinell Hardness | |||
| Min | Max | 0.5 mm -0.8 mm | 0.81 mm – 1.30 mm | 1.30 mm – above | ||||||||
| 1100 | O | 75 | 110 | 20 | 25 | 29 | ||||||
| H12 | 95 | 130 | 5 | 6 | 7 | |||||||
| H14 | 110 | 145 | 3 | 4 | 5 | |||||||
| H16 | 130 | 165 | 2 | 3 | 4 | |||||||
| H18 | 150 | — | 2 | 2 | 3 | |||||||
| 5083 | 12 Min % | 275 – 350 MPa | 75 HB | 125 Min MPa | ||||||||
| 6061 | – | 45,000 | 12 | 40,000 | 31,000 | 95 | ||||||
| 6082 | 8 | 295 | 95 | – | 240 | – | – | |||||
| 7075 T6, T651 | 11 | 83-572 | 73- 503 | 150 | ||||||||
| 7075 T73, T7351 | 13 | 73-503 | 63-434 | NA | ||||||||
Quyen Aluminium based in Da Nang, Vietnam is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
| Grade | UNS | USA | Japan | France | ISO | WNR | EN | DIN | ISO | BS (OLD) |
| 1100 | A91100 | AA1100 | JIS A1100P | NF 1100 | Al 99.0 Cu. | – | – | – | – | – |
| 6082 | A96082 | AA6082 | – | – | – | 3.2315 | AW-6082 | AlMgSi1 | AlSi1MgMn | HE30 |
| 5083 | A95083 | 5083 | – | – | AlMg4,5Mn0,7 | 3.3547 | AW-AlMg4,5Mn0,7 | AlMg4,5Mn | – | – |
| 6061 | A96061 | AA6061 | – | – | – | 3.3211 | AW-AlMg1SiCu EN AW-6061 | AlMgSiCu | AlMg1SiCu | HE20 |
| 7075 | A97075 | 7075 | 3.4365 | ENAW-AlZn5.5MgCu EN AW-7075 | AlZnMgCu1.5 | AlZn6MgCu | 7075 L95 L96, V95 |
| NB Sizes | Sch 5 | Sch 10 | Sch 40 | Sch 80 | Sch 160 |
| 1/8″ | ✓ | ✓ | ✓ | ✓ | |
| 1/4″ | ✓ | ✓ | ✓ | ✓ | |
| 3/8″ | ✓ | ✓ | ✓ | ✓ | |
| 1/2″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 3/4″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 1″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 1 1/4″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 1 1/2″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 2″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 2 1/2″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 3″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 4″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 5″ | ✓ | ✓ | ✓ | ✓ | |
| 6″ | ✓ | ✓ | ✓ | ✓ |
| Physical Property | Value |
| Density | 2,70 g/cm³ |
| Melting Point | 582 °C |
| Thermal Expansion | 23.4 x 10^-6 /K |
| Modulus of Elasticity | 69 GPa |
| Thermal Conductivity | 170 W/m.K |
| Electrical Resistivity | %43 IACS |
Yes, we offer custom sizes for Aluminium Welded Pipes to meet specific project needs. Our team at Quyen Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@quyenaluminium.com
Aluminium welded pipes find applications in a very broad spectrum because of their strength, light weight, and corrosion resistance. They are applied in construction to be utilized as handrails, fencing, and support structures. The transport and automobile sectors utilize them in fuel systems, exhaust components, and framework parts. HVAC and refrigeration systems use aluminium welded pipes for ducting and fluid transfer because of their thermal conductivity. On boats, these pipes are perfect for fluid lines and structural components that will be exposed to seawater. They find applications in furniture, agriculture, and industrial machinery for aesthetic and utilitarian purposes.
