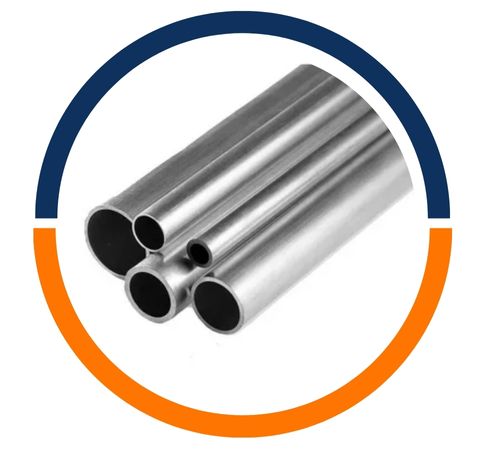

Quyen Aluminium, a Da Nang, Vietnam-based company, is a reputable manufacturer and supplier of premium aluminium products such as Aluminium 1060 pipes. Quyen Aluminium is renowned for its dedication to quality, accuracy, and punctuality, offering products that are compliant with both national and international standards. Quyen Aluminium’s Aluminium 1060 pipes are appreciated for their superior resistance to corrosion, lightness, and weldability. These pipes are used extensively in process industries where there is a need for strong, long-lasting, and corrosion-resistant tubing solution for fluid transport, structural, and decorative applications.
Aluminium 1060 tubes consist of commercially pure aluminium with at least 99.6% aluminium content. This alloy is known for excellent corrosion resistance, high electrical and thermal conductivity, and good formability. The tensile strength typically is between 60 to 100 MPa based on temper. Aluminium 1060 is not heat-treatable but can be strengthened by cold working. The pipes are light in weight, readily weldable, formable, and machineable, making them ideal for applications where the strength is moderate but corrosion resistance and workability are essential.
Standards : ASTM B345, B241, B429 / ASME SB345, SB241, SB429
Temper : H14
Standard : AMS QQ-A-200/8, AMS QQ-A-200/9, AMS 4160/4161/4172
Size : 8 (1-1/2″ / 1.900″)
Outer Diameter : 1″ through 16″
Length : Double Random, Single Random, Cut Length
Thickness : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
End : Plain End, Beveled End, Threaded
| Aluminium 1060 | Fe | Si | Mg | Mn | Cu | Zn | Ti | Al |
| 0.15 – 0.20 | 0.10 – 0.15 | 0.01 – 0.03 | 0.01 – 0.03 | 0.01 – 0.05 | 0.01 – 0.03 | 0.020 – 0.030 | 99.60 |
| Mechanical Properties – Al 1060 | |||||||||||||||||||
| Alloy | Temper | UTS(Mpa) | % Elongation | ||||||||||||||||
| Min | Max | 0.5 mm -0.8 mm | 0.81 mm – 1.30 mm | 1.30 mm – above | |||||||||||||||
| 1060 | O | 55 | 75 | 25 | 25 | 30 | |||||||||||||
| H12 | 75 | 110 | 6 | 6 | 7 | ||||||||||||||
| H14 | 90 | 120 | 5 | 5 | 6 | ||||||||||||||
| H16 | 95 | 130 | 4 | 4 | 4 | ||||||||||||||
| H18 | 130 | — | 3 | 3 | 3 | 23 | |||||||||||||
| STANDARD | UNS |
| Aluminium 1060 | A91060 |
Quyen Aluminium based in Da Nang, Vietnam is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminium 1060 Pipes to meet specific project needs. Our team at Quyen Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@quyenaluminium.com
Aluminium 1060 pipes find extensive applications in plumbing, air conditioning and refrigeration systems, and chemical processing industries due to their corrosion resistance and non-toxic nature. They are also used in the food and beverage industry for sanitary tubing, along with architectural and decorative applications where a lightweight, clean, and durable pipe is desired. They are also utilized in electrical conduit systems and automotive systems where weight reduction and corrosion resistance enhance performance and durability.
