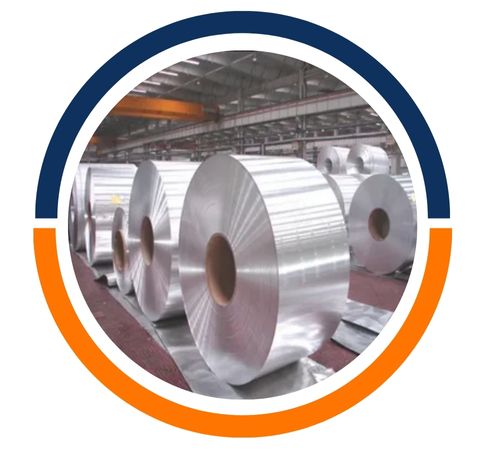

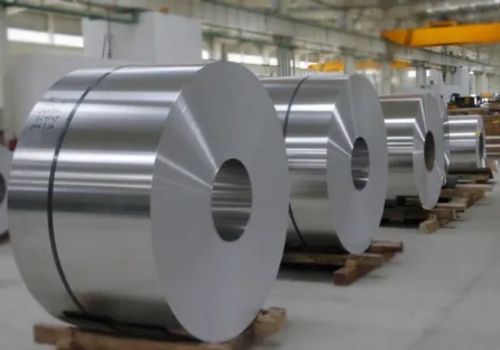

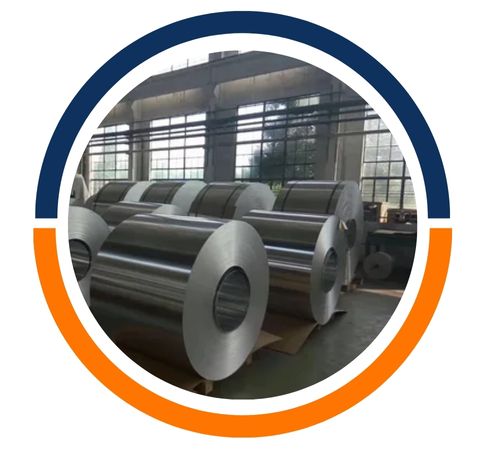

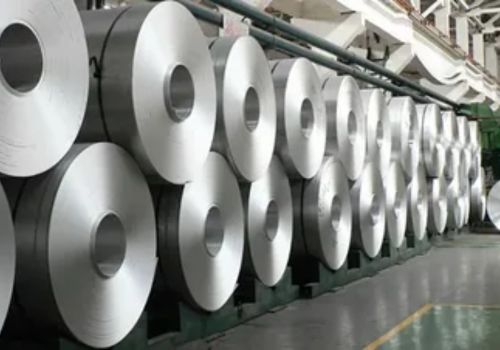

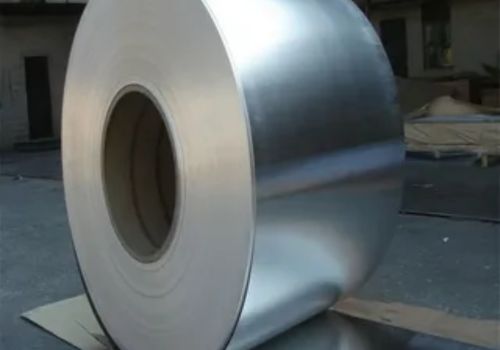

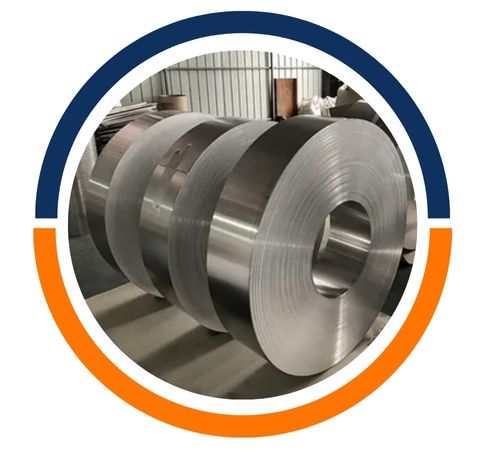

**Quyen Aluminium**, a reputable manufacturer and supplier located in Da Nang, Vietnam, offers top-notch **Aluminium 1100 Coils** for industries that demand high purity, outstanding corrosion resistance, and excellent workability. Aluminium 1100 is known as a commercially pure aluminium grade (with at least 99% aluminium) and is celebrated for its ductility, smooth finish, and lightweight nature. Our coils are crafted under rigorous quality control measures, guaranteeing precise dimensions, consistent thickness, and superior surface quality. Whether for decorative or functional purposes, Aluminium 1100 Coils find their place in architecture, food processing, marine, chemical, and general engineering applications around the world.
These coils primarily consist of aluminium (≥99.0%), with small amounts of copper (0.05–0.20%) and trace elements of iron, silicon, manganese, zinc, and others. This non-heat-treatable alloy boasts excellent corrosion resistance in various environments, including atmospheric, marine, and chemical settings. It maintains good tensile strength (90–140 MPa), high ductility, and remarkable cold-working capabilities. With its excellent thermal and electrical conductivity, along with a reflective surface finish, it’s perfect for precision fabrication, forming, and surface treatments like anodizing or coating.
Standards : ASTM B209 / ASME SB209
Temper : O,H14,H16,H18,H19,H22,H24
Thickness : 0.1-4
Width : coil
Length : 100-1600
Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.
Finish :Mill, Customer specific finish
Aluminum Coil Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating

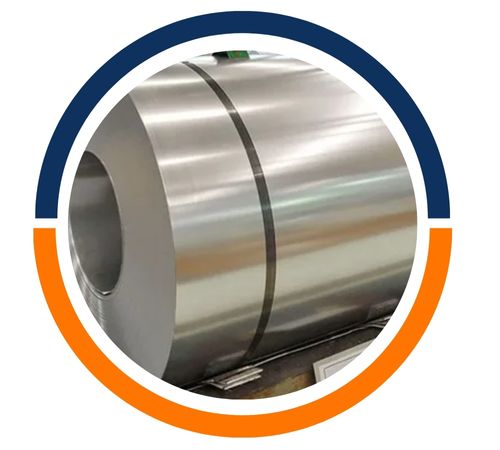

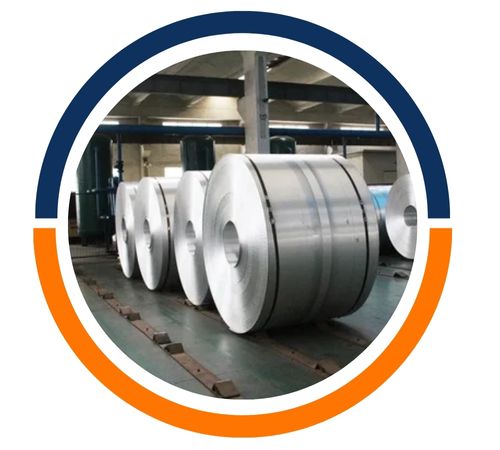

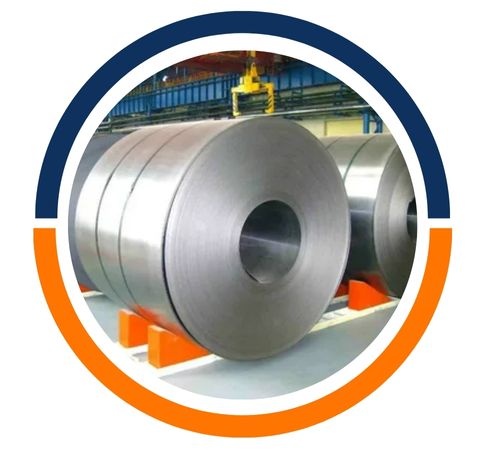

Type : Hot-Rolled (HR) / Cold-Rolled (CR) Coil
| UNS | USA | Japan | France | ISO |
| A91100 | AA1100 | JIS A1100P | NF 1100 | Al 99.0 Cu. |
| Alloy | Fe | Si | Mg | Mn | Cu | Zn | Ti | Cr | Others | AI |
| 1100 (min) | 0.35 | 0.25 | 0.01 | 0.01 | 0.05 | 0.01 | 0.020 | Trace | 0.05 (each) | 99.60% |
| 1100 (max) | 0.50 | 0.35 | 0.03 | 0.05 | 0.20 | 0.05 | 0.030 | Trace | 0.15 (total) | remainder |
| Alloy | Temper | UTS(Mpa) | % Elongation | |||
| Min | Max | 0.5 mm -0.8 mm | 0.81 mm – 1.30 mm | 1.30 mm – above | ||
| 1100 | O | 75 | 110 | 20 | 25 | 29 |
| H12 | 95 | 130 | 5 | 6 | 7 | |
| H14 | 110 | 145 | 3 | 4 | 5 | |
| H16 | 130 | 165 | 2 | 3 | 4 | |
| H18 | 150 | — | 2 | 2 | 3 | |
Aluminium 1100 Coils are commonly utilized in **roofing, siding, decorative panels, heat exchangers, HVAC systems, chemical equipment, food and beverage processing, packaging, marine hardware, and insulation**. They are also favored for **light-duty structural components, signage, nameplates, reflectors, and general fabrication** where lightweight, corrosion-resistant, and non-toxic materials are crucial. Available in various tempers, thicknesses, widths, and surface finishes (mill finish, anodized, polished, or coated), **Aluminium 1100 Coils** provide a versatile, durable, and cost-effective solution for a wide range of applications.
Yes, we offer custom sizes for Aluminium 1100 Coils to meet specific project needs. Our team at Quyen Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@quyenaluminium.com
Aluminium 1100 coils are widely used across various industries due to their excellent corrosion resistance and formability. Common applications include manufacturing of chemical equipment, food and beverage containers, and decorative items. In the automotive sector, they are used for lightweight components, while in the construction industry, they are ideal for roofing and cladding. Additionally, Aluminium 1100 coils are used in heat exchangers, electrical conductors, and heat shields, offering reliable performance where high conductivity, corrosion resistance, and ease of fabrication are essential.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
