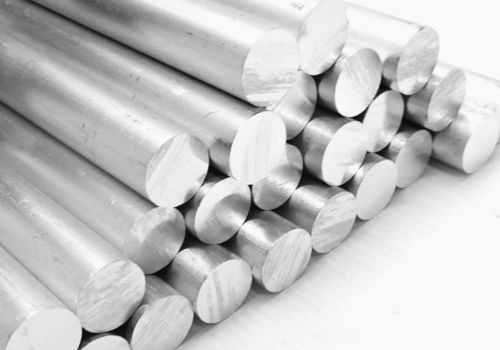

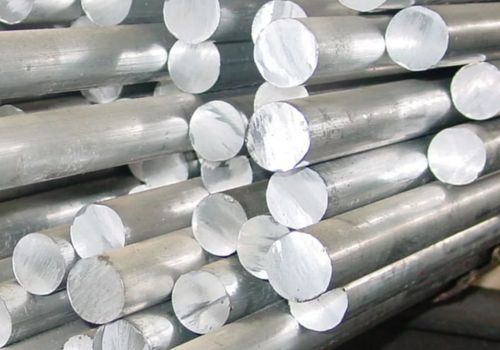

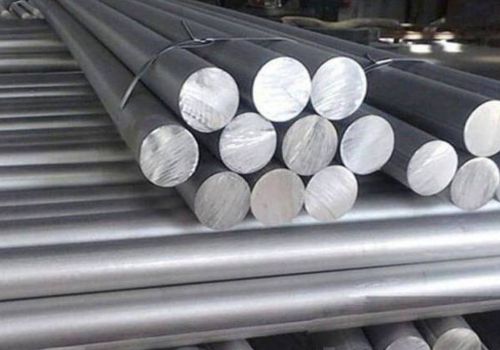

**Quyen Aluminium**, a top-notch manufacturer and supplier based in Da Nang, Vietnam, proudly presents its high-quality **Aluminium 1100 Round Bars**. These bars are known for their impressive corrosion resistance, outstanding formability, and smooth finish, making them perfect for a variety of industrial and commercial applications. With a minimum aluminium content of 99%, Alloy 1100 is a go-to choice in industries that demand reliable performance, lightweight structures, and excellent workability. Our round bars are crafted with precision tolerances, clean surfaces, and consistent mechanical properties, ensuring they perform optimally in architectural, chemical, and food-processing settings.
**Aluminium 1100 Round Bars** are primarily made up of pure aluminium, with only trace amounts of copper, iron, silicon, and other elements. This alloy boasts a tensile strength between 90 to 140 MPa and offers remarkable corrosion resistance in both chemical and atmospheric environments. While it can’t be heat-treated, it can be strengthened through cold working. Its excellent thermal conductivity, ductility, and non-magnetic characteristics make it a favored option for lightweight, corrosion-resistant projects.
| Specifications | ASTM B221, B211, B565, B316, AMS 4121 2014 |
|---|---|
| Temper | T3, T4, T5, T6, T651, T6511 |
| Standard | ASTM, ASME, AMS, GB/T, JIS |
| Length | 1000-6000 |
| Size: | 5 mm To 500 mm |
| Diameter | 6-500 |
| Finish | Bright, Polish & Black |
| Type | Hot-Rolled (HR) / Cold-Rolled (CR) Sheet |
| Aluminium 1100 | Fe | Si | Mg | Mn | Cu | Zn | Ti | Al |
| 0.35 – 0.50 | 0.25 – 0.35 | 0.01 – 0.03 | 0.01 – 0.05 | 0.05 – 0.20 | 0.01 – 0.05 | 0.020 – 0.030 | 99.00% |
| Mechanical Properties – AA 1100 | |||||||||||||||||||
| Alloy | Temper | UTS(Mpa) | % Elongation | ||||||||||||||||
| Min | Max | 0.5 mm -0.8 mm | 0.81 mm – 1.30 mm | 1.30 mm – above | |||||||||||||||
| 1100 | O | 75 | 110 | 20 | 25 | 29 | |||||||||||||
| H12 | 95 | 130 | 5 | 6 | 7 | ||||||||||||||
| H14 | 110 | 145 | 3 | 4 | 5 | ||||||||||||||
| H16 | 130 | 165 | 2 | 3 | 4 | ||||||||||||||
| H18 | 150 | — | 2 | 2 | 3 | ||||||||||||||
| STANDARD | UNS | WERKSTOFF NR. |
| Aluminium 1100 | A91100 | — |
These round bars find their way into **kitchen equipment, chemical handling tools, architectural trim, decorative hardware, food and beverage processing systems, marine and saltwater components, HVAC systems, and pressure vessels**. They’re also perfect for **reflectors, nameplates, rivets, signage, and various general fabrication tasks** where corrosion resistance, aesthetic appeal, and easy machinability are essential. Offered in a range of diameters, tempers, and lengths, **Aluminium 1100 Round Bars** are a dependable choice for diverse industrial and commercial engineering needs.
| Property | Value |
|---|---|
| Density | 2.71 g/cm³ |
| Melting Point | 643 – 657 °C (1190 – 1215 °F) |
| Tensile Strength (Ultimate) | 75 – 150 MPa (10.9 – 21.8 ksi) |
| Tensile Strength (Yield) | 34 – 55 MPa (4.9 – 8.0 ksi) |
| Elongation at Break | 15 – 28% |
| Hardness (Brinell) | 23 HB |
| Thermal Conductivity | 222 W/m·K |
| Electrical Conductivity | 61% IACS |
| Modulus of Elasticity | 68.9 GPa (10,000 ksi) |
| CD | Cold drawn | P | Polished |
| CG | Centreless ground | HF | Hot finished |
| BD | Bright drawn | SRE | Slit rolled edge |
| P&T | Peeled and turned | RT | Rough turned/peeled |
| CF | Cold finished | HRAP | Hot rolled annealed and pickled |
| ST | Smooth turned | PR | Peeled and reeled |
Yes, we offer custom sizes for Aluminium 1100 Round Bars to meet specific project needs. Our team at Quyen Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@quyenaluminium.com
Aluminum 1100 round bars are widely used in industries with high corrosion resistance, good formability and good electrical conductivity are required Common applications are heat exchangers, food and chemical processing, equipment manufacturing food and cleaning supplies. Because of its versatility, it is used for signs, cooking pots and water bowls. The thermal inertness of the material makes it suitable for complex designs in the aerospace and automotive industries, especially for non-structural components In addition, it is ideal for applications requiring welding, brazing, or soldering , due to its goodness adhesion and finishing Identify the property.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
