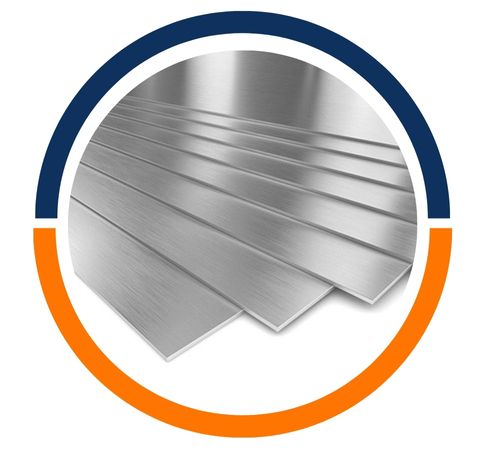

Quyen Aluminium, a reputable manufacturer and supplier located in Da Nang, Vietnam, is well-known for providing top-notch Aluminium 2024 Sheets and Plates that meet international standards. Thanks to their cutting-edge technology, skilled workforce, and rigorous quality control, the company ensures that their products deliver strength, durability, and precision. Aluminium 2024 Sheets and Plates are prized for their remarkable fatigue resistance, impressive strength-to-weight ratio, and excellent machinability. Quyen Aluminium’s dedication to quality, prompt delivery, and customer satisfaction has established it as a trusted partner for industries like aerospace, automotive, defense, and engineering around the globe.
These Aluminium 2024 Sheets and Plates primarily consist of aluminium with copper (3.8–4.9%) as the main alloying element, along with magnesium (1.2–1.8%), manganese (0.3–0.9%), and small amounts of silicon, iron, and zinc. This unique blend offers outstanding mechanical strength and fatigue resistance. With a tensile strength of about 470 MPa and a yield strength of roughly 325 MPa, depending on the temper, Aluminium 2024 is both tough and easy to machine. Although it has somewhat lower corrosion resistance, it remains stable and performs well when properly protected, making it ideal for demanding engineering and aerospace applications.
Standards : ASTM B209 / ASME SB209
Temper : O, T3,T4, T6, T651
Thickness : 0.2-250
Width : 100-2600
Length : 500-10000
Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.
Finish :Mill, Customer specific finish
Aluminum Sheet/ Plate Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating
Type : Hot-Rolled (HR) / Cold-Rolled (CR) Sheet
| Grade | Al | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other |
| min. | Bal | 3.80 | 0.30 | 1.20 | ||||||
| max. | Bal | 0.50 | 0.50 | 4.90 | 0.90 | 1.80 | 0.10 | 0.25 | 0.15 | 0.05 |
| Temper | Tensile Strength | Yield Strength | Elongation |
| KSI | KSI | % | |
| (annealed) | 32 | 14 | 12 |
| T3 | 63 | 42 | 15 |
Quyen Aluminium based in Da Nang, Vietnam is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
| European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) |
| AW-AlCu4Mg1 | AU4G1 | 3.1355 | A92024 | AlCu4Mg1 | 2024 | AlCuMg2 |
| Sizes (mm) | Theoretical Mass KG/Plate |
|---|---|
| 2000 X 1000 X 0.5 | 2500 X 1250 X 0.5 |
| 2000 X 1000 X 0.7 | 2500 X 1250 X 0.7 |
| 2000 X 1000 X 0.9 | 2500 X 1250 X 0.9 |
| 2000 X 1000 X 1.2 | 2500 X 1250 X 1.2 |
| 3000 X 1500 X 1.2 | 2000 X 1000 X 1.6 |
| 2500 X 1250 X 1.6 | 3000 X 1500 X 1.6 |
| 2000 X 1000 X 2.0 | 2500 X 1250 X 2.0 |
| 3000 X 1500 X 2.0 | 2500 X 1250 X 2.5 |
| 2.79 | 4.36 |
| 3.91 | 6.10 |
| 5.02 | 7.85 |
| 6.74 | 10.46 |
| 15.01 | 8.93 |
| 13.95 | 20.09 |
| 11.16 | 17.44 |
| 25.11 | 21.80 |
Yes, we offer custom sizes for Aluminium 2024 Sheets and Plates to meet specific project needs. Our team at Quyen Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@quyenaluminium.com
Aluminium 2024 Sheets and Plates find extensive use in industries that require high strength and fatigue resistance. In aerospace, they are utilized for fuselage structures, wings, and precision components due to their ability to endure stress and load. The automotive sector employs them for engine parts, transmission systems, and high-performance chassis components. In defense, they are used in armored vehicles, weaponry, and equipment that must withstand extreme conditions. Engineering and construction industries depend on them for robust frameworks, precision tools, and structural components. Their impressive strength-to-weight ratio makes Aluminium 2024 Sheets and Plates a go-to choice for various applications.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
