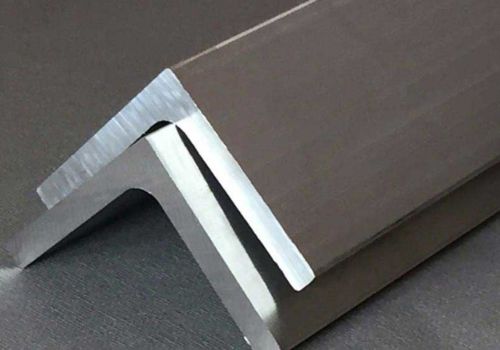

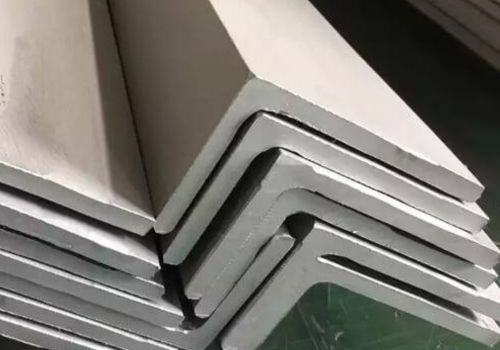

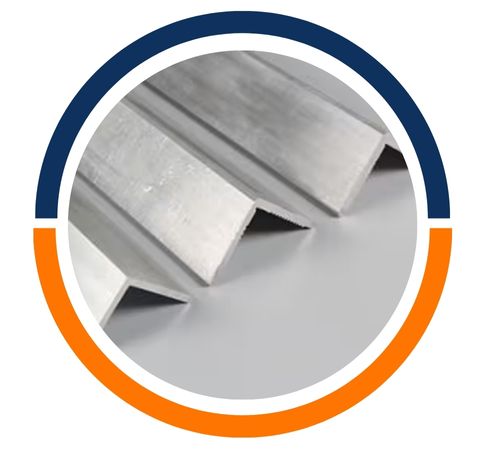

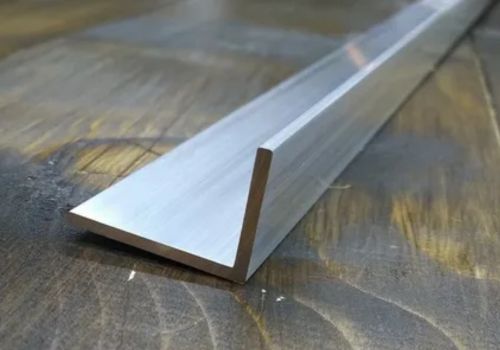

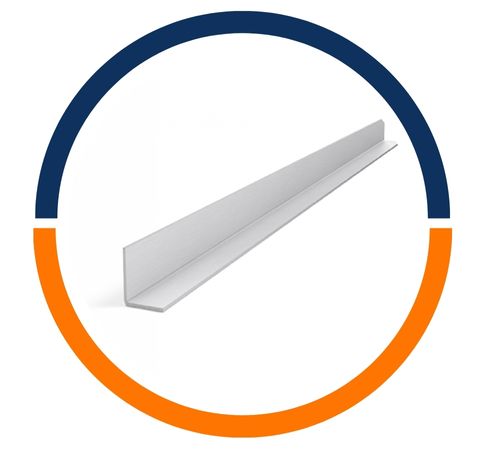

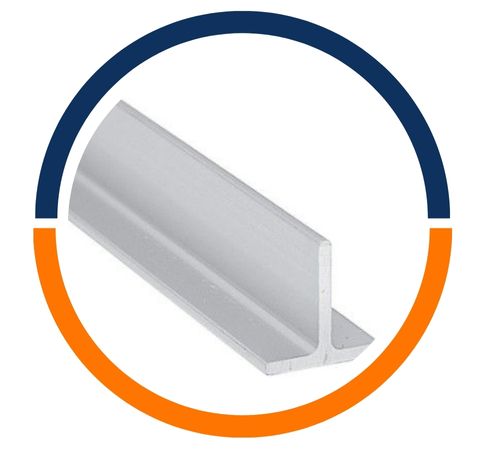

Quyen Aluminium, based in Da Nang, Vietnam, is a reputable manufacturer and supplier of high-quality Aluminium 5005 Angles. These angles are celebrated for their outstanding corrosion resistance, lightweight nature, and dependable mechanical performance. Produced with cutting-edge technology and stringent quality standards, they meet international specifications. Quyen Aluminium caters to various industries, including construction, marine, automotive, aerospace, and industrial engineering, offering reliable solutions for structural, architectural, and precision applications. With a commitment to durability, consistency, and timely delivery, Aluminium 5005 Angles are popular in both domestic and global markets for their high performance and longevity.
Aluminium 5005 Angles are mainly made from an aluminium alloy that includes magnesium (0.8%–1.2%) and small amounts of chromium (0.1% max) along with other elements. This unique composition grants them excellent corrosion resistance, especially in marine and chemical settings, while also providing good tensile strength and ductility. On the mechanical side, Aluminium 5005 boasts impressive elongation, high formability, and easy machinability, all while keeping a lightweight profile. This makes them perfect for structural frameworks, supports, and architectural components.
Standards : ASTM B221 / B211 ASME SB221 / SB211, EN573, EN485, AMS 4003, AMS 4102
Temper : O,H12,H14,H16,H18,H19,H22,H24
Standard : ASTM, ASME, AMS, GB/T, JIS
Thickness : 50 mm to 6000 mm Long
Size : 3mm* 20mm* 20mm~ 12mm* 100mm* 100mm
Length : 1 To 6 Meters, Custom Cut Length
Finish : Mill, Customer specific finish

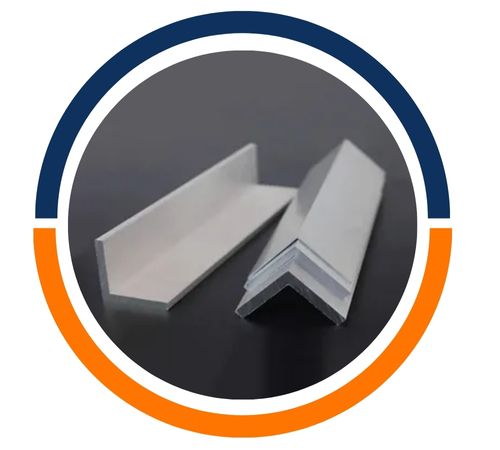

Surface : Anodize, powder coating, electrophoresis, PVDF coating, wood grain painting, matted, etc
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ga | V | Ti | Other | Min.A1 |
| 5005 | 0.30 | 0.7 | 0.20 | 0.20 | 0.50-1.1 | 0.10 | – | 0.25 | – | – | – | 0.20 | Remainder |
| Temper | 0.2% Proof Stress, MPa min† | Tensile Strength, MPa | Elongation % min‡ |
| O (annealed) | 35 | 105 – 145 | 12 – 22 |
| H12 | 95 | 125 – 165 | 2 – 8 |
| H14 | 115 | 145 – 185 | 1 – 6 |
| H16 | 135 | 165 – 205 |
| Standard | UNS | ISO | BS | DIN |
| 5005 | A95005 | AlMg1 | N41 | 3.3315 |
These angles find extensive use in industries that demand strong, corrosion-resistant, and lightweight structural materials. In construction, they serve as frameworks, roofing supports, and architectural features. The marine industry utilizes them for shipbuilding, offshore platforms, and parts exposed to saltwater. In the automotive and aerospace sectors, they are favored for lightweight assemblies and structural components. Additionally, they are employed in industrial machinery, transportation frameworks, and the fabrication of chemical equipment. The combination of strength, corrosion resistance, and ease of fabrication makes Aluminium 5005 Angles a go-to choice for many applications.
Yes, we offer custom sizes for Aluminium 5005 Angles to meet specific project needs. Our team at Quyen Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@quyenaluminium.com
Aluminum 5005 angles are widely used in various industries due to their excellent corrosion resistance, light weight and versatility. They are commonly used in construction projects, such as between windows, doors and curtains, where aesthetic appeal and weather resistance are important Besides being able to withstand salt water corrosion, these parts are ideal for the marine environment including boat and shipbuilding. It is used for construction applications, such as framing, supports and brackets, in construction and manufacturing. Aluminum 5005 angles are preferred for their durability, ease of manufacture and low maintenance, making them suitable for indoor and outdoor applications.
