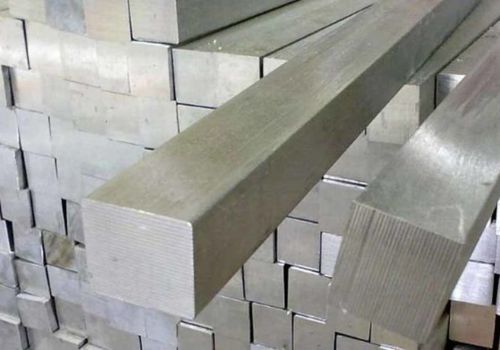

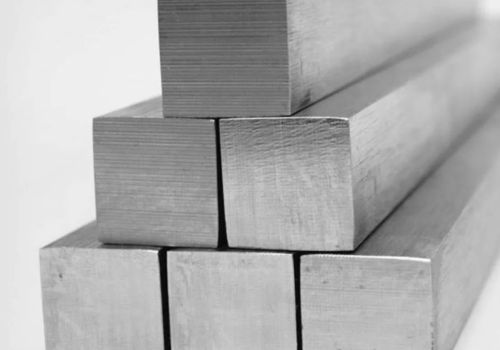

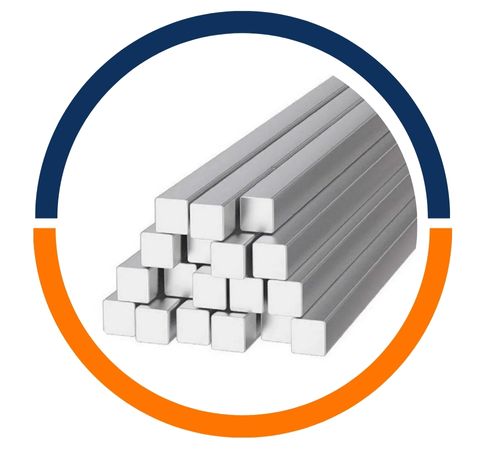

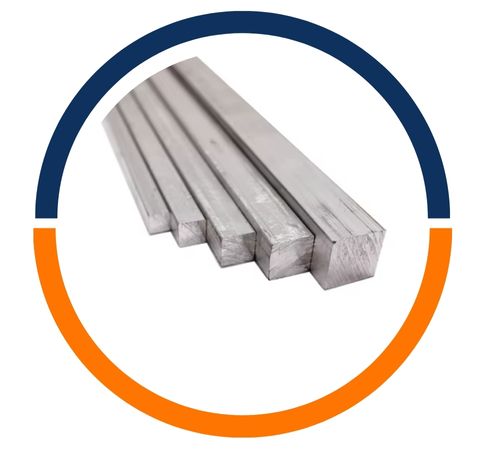

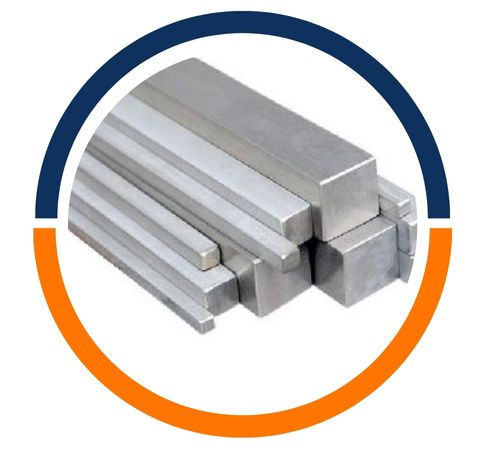

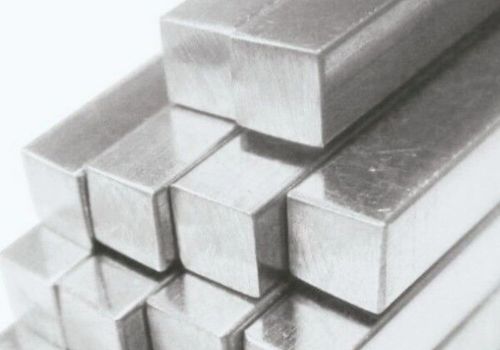

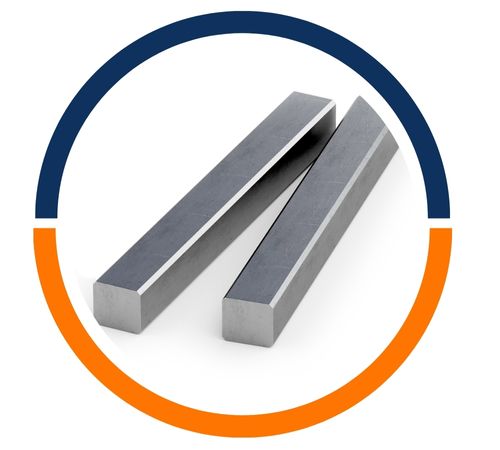

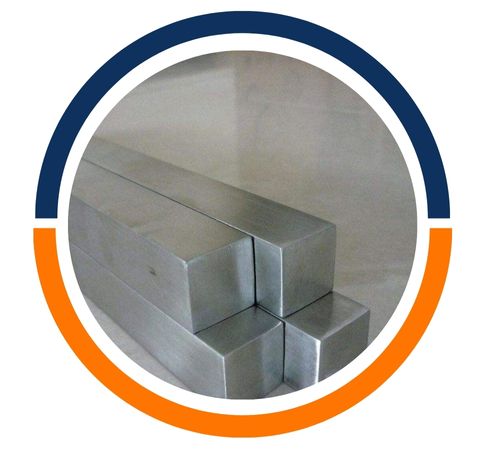

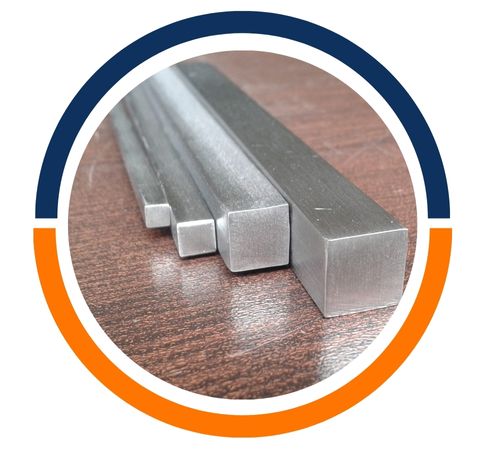

Quyen Aluminium, a well-respected manufacturer and supplier based in Da Nang, Vietnam, has built a solid reputation for providing top-notch Aluminium 5052 Square Bars that adhere to international standards. Thanks to their state-of-the-art production facilities and rigorous quality control measures, the company prioritizes customer satisfaction and consistently delivers products that are not only durable but also corrosion-resistant and reliable. Aluminium 5052 Square Bars are prized for their strength, weldability, and versatility, making them a perfect fit for a variety of industrial sectors. Quyen Aluminium’s dedication to precision engineering and timely delivery solidifies its role as a trusted partner for clients around the globe in the marine, construction, and transportation industries.
These Aluminium 5052 Square Bars are primarily made of aluminium, with magnesium (2.2–2.8%) as the key alloying element, along with trace amounts of chromium, silicon, iron, copper, and manganese. This particular alloy boasts impressive resistance to seawater and chemical corrosion. In terms of mechanical properties, it offers tensile strength ranging from 210–260 MPa and yield strength between 90–180 MPa, depending on the temper. Since it’s non-heat-treatable, Aluminium 5052 provides excellent ductility, fatigue resistance, and dimensional stability, all while maintaining toughness and weldability, making it an ideal choice for structural and industrial applications.
Specification : ASTM B 221 ASME SB 221, B211, B565, B316 1100, AMS 4102
Standard : ASTM, BS and all International Standards
Temper : O, H12, H14, H16, H18, H22, H24, H26, H32, H112
Length : 100 mm To 3000 mm Long & Above
Size : 5 mm To 500 mm
| Aluminium 5052 | Fe | Si | Mg | Mn | Cu | Zn | Ti | Al |
| 0.15 – 0.40 | 0.10 – 0.25 | 2.20 – 2.80 | 0.01 – 0.10 | 0.01 – 0.10 | 0.01 – 0.10 | 0.020 – 0.030 | 97.2 |
| Mechanical Properties – AA 5052 | ||||||
| Alloy | Temper | UTS(Mpa) | % Elongation | |||
| Min | Max | 0.5 mm -0.8 mm | 0.81 mm – 1.30 mm | 1.30 mm – above | ||
| 5052 | O | 171 | 213 | 16 | 18 | 19 |
| H12 | 213 | 261 | 5 | 7 | 9 | |
| H14 | 233 | 281 | 4 | 6 | 7 | |
| H16 | 254 | 302 | 3 | 4 | 4 | |
| H18 | 268 | – | 3 | 4 | 4 | |
Density : 2.68 g/cm3
Melting point : 607.2 – 649 °C (1125 – 1200 °F)
Tensile Strength : 228 MPa – 33000 psi
| STANDARD | UNS | WERKSTOFF NR. | European Standard | BS (OLD) | ISO | USA (AA) | GERMANY (DIN) |
| Aluminium 5052 | A95052 | 3.3523 | AW-AlMg2,5 | AG2,5C | AlMg2,5 | 5052 | AlMg2,5 |
Quyen Aluminium based in Da Nang, Vietnam is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminum 5052 Square Bars to meet specific project needs. Our team at Quyen Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@quyenaluminium.com
Aluminium 5052 Square Bars find extensive use in industries that require lightweight, strong, and corrosion-resistant materials. In the marine industry, they are utilized in shipbuilding, boat hulls, and offshore structures. In transportation, they play a crucial role in automotive chassis, railway components, and aerospace fittings, delivering strength without the added weight. The construction sector employs them in structural frameworks, architectural designs, and welded assemblies, while the chemical industry depends on them for storage tanks, pipelines, and pressure vessels. Their versatility, durability, and ability to withstand harsh environments make Aluminium 5052 Square Bars an essential material across various engineering and industrial applications.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
