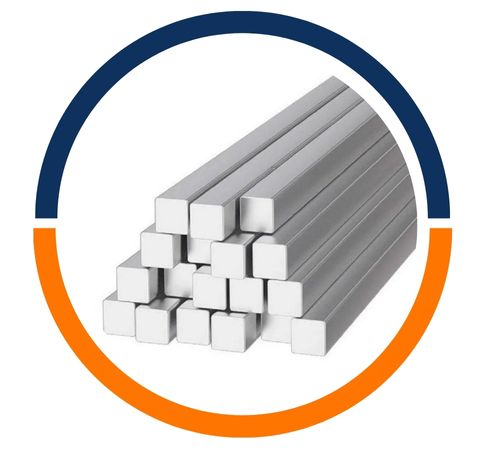

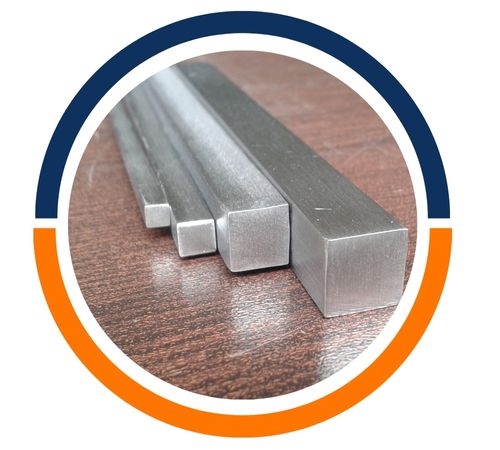

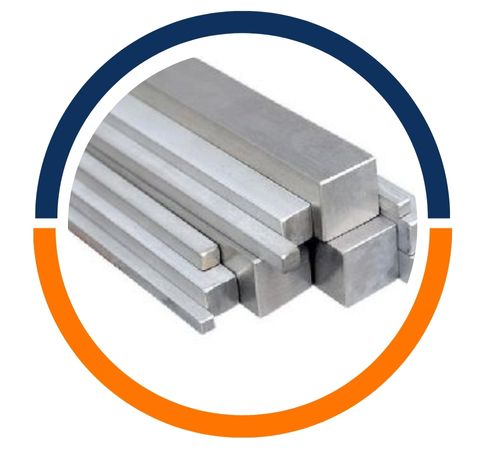

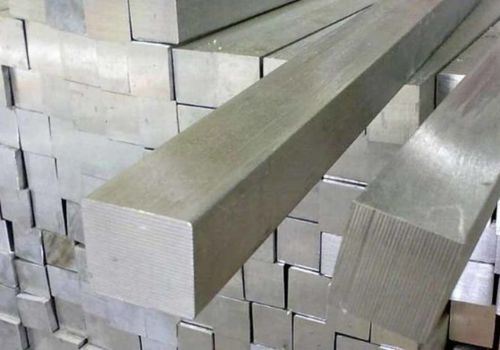

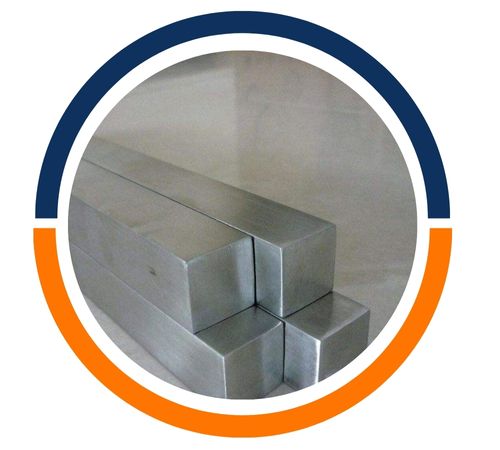

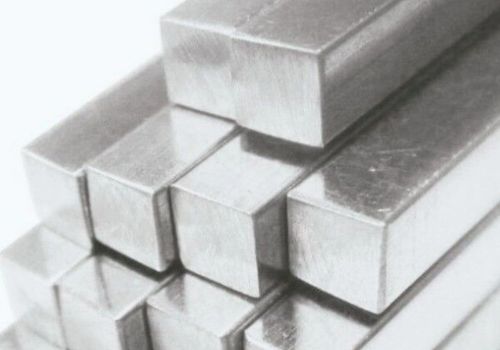

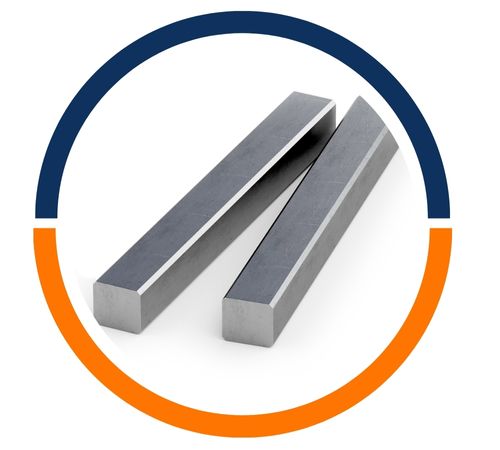

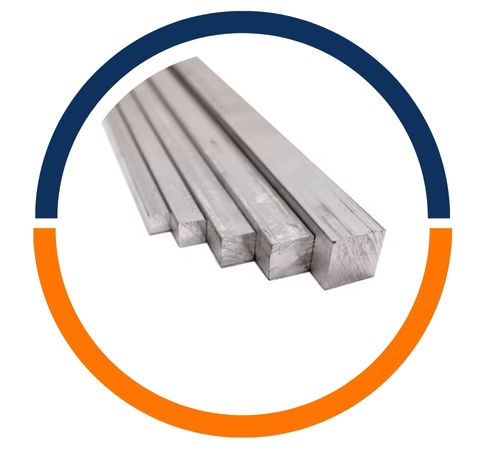

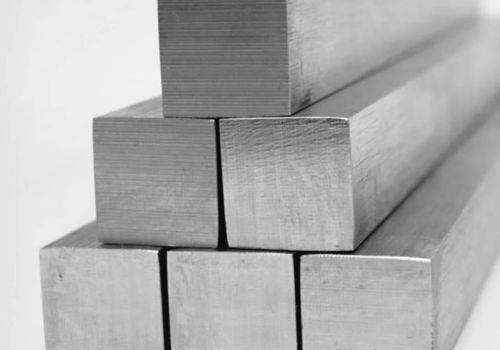

Da Nang-based Quyen Aluminium is a highly acclaimed producer and supplier of high-grade aluminium products, among them Aluminium 1100 square bars. With their reputation for delivering pure and precision-engineered aluminium materials, Quyen Aluminium provides numerous industries with efficient and affordable solutions. The organization has stringent quality control procedures as well as adheres to modern manufacturing processes to ensure that every product adheres to both national and international standards. Square bars of aluminium 1100 by Quyen Aluminium are highly prized due to their superior corrosion resistance, excellent workability, and multi-industrial and commercial applicability.
Aluminium 1100 square bars are at least 99% aluminium and are among the softest and most ductile grades in the aluminium family. They have excellent corrosion resistance, especially in marine and industrial atmospheres, and high thermal and electrical conductivity. These bars possess tensile strength that is quite low, varying between 70 and 120 MPa, yet have good workability and can be welded, machined, or shaped easily. Although non-heat-treatable, they are sensitive to cold working for minimal strengthening. Aluminium 1100 is recommended where minor concern for strength exists but corrosion resistance and formability are crucial.
Specification : ASTM B 221 ASME SB 221, B211, B565, B316 1100, AMS 4102
Standard : ASTM, BS and all International Standards
Temper : O, H12, H14, H16, H18, H22, H24, H26, H32, H112
Length : 100 mm To 3000 mm Long & Above
Size : 5 mm To 500 mm
| Alloy | Fe | Si | Mg | Mn | Cu | Zn | Ti | Cr | Each | AI |
| 1100 (min) | 0.35 | 0.25 | 0.01 | 0.01 | 0.05 | 0.01 | 0.020 | Trace | 0.05 | 99.60% |
| 1100 (max) | 0.50 | 0.35 | 0.03 | 0.05 | 0.20 | 0.05 | 0.030 | Trace | 0.15 | remainder |
| Alloy | Temper | UTS(Mpa) | % Elongation | |||
| Min | Max | 0.5 mm -0.8 mm | 0.81 mm – 1.30 mm | 1.30 mm – above | ||
| 1100 | O | 75 | 110 | 20 | 25 | 29 |
| H12 | 95 | 130 | 5 | 6 | 7 | |
| H14 | 110 | 145 | 3 | 4 | 5 | |
| H16 | 130 | 165 | 2 | 3 | 4 | |
| H18 | 150 | — | 2 | 2 | 3 | |
| STANDARD | UNS | USA | Japan | France | AMS | ISO |
| Aluminium 1100 | A91100 | AA1100 | JIS A1100P | NF 1100 | 4102 1100-F | Al99.0Cu |
Quyen Aluminium based in Da Nang, Vietnam is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminum 1100 Square Bars to meet specific project needs. Our team at Quyen Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@quyenaluminium.com
Aluminium 1100 square bars find extensive applications in industries where corrosion resistance is good, formability is excellent, and thermal or electrical conductivity is high. They are applied in the electrical industry for conductor bars and grounding purposes. The chemical and food industries use these bars for storage tanks and processing equipment because they are non-toxic and corrosion resistant. They are also frequently encountered in architectural features, signs, heat exchangers, and decorative mouldings. Their capacity to be readily formed, welded, and polished makes Aluminium 1100 square bars ideal for structural and aesthetic use in a broad range of low-load applications.
